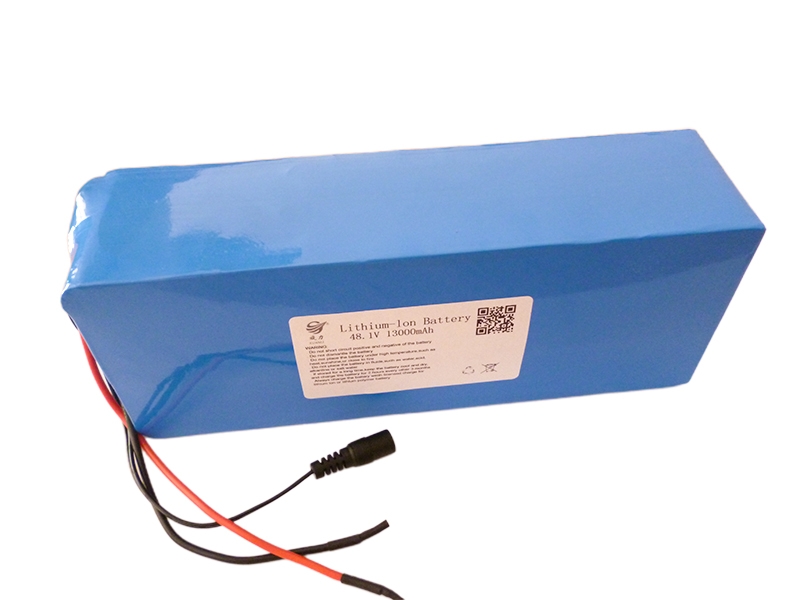

24V power battery: Product model: XL 48V 13000mAh
24V power battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
Packing method: industrial PVC heat shrinkable film
Wire model: UL3135 14AWG
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal votage after the battery pack is assembled:48V
· Single battery capacity: 2.6Ah
· Battery combination mode: 13 strings and 5 parallels
· Battery voltage range after combination: 32.5V~54.6V
· Battery capacity after combination:13AH
· Battery pack power: 624W
· Battery pack size: 75*100*270mm
· Maximum discharge current: <13A
· Instantaneous discharge current: 30A~50A
· Maximum charging current: 0.2-0.5C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
48V power battery
· Comply with relevant national standards and requirements for batteries
· All finished battery products have been calibrated and tested before leaving the factory. They can be used directly and normally
